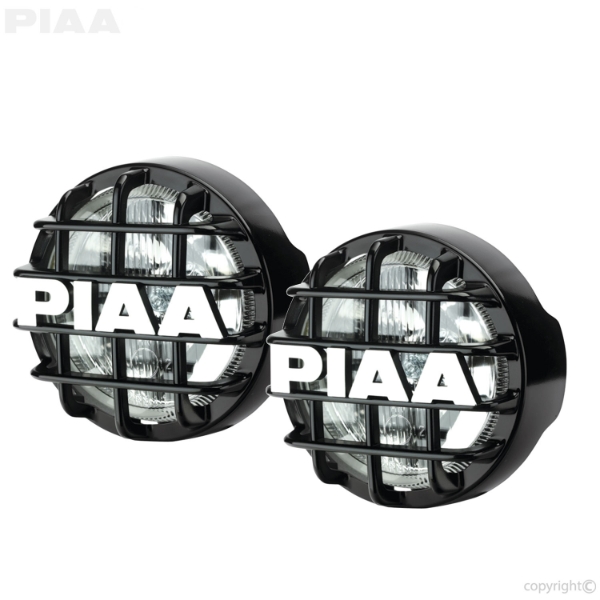

510 ATP Intense White ATP Halogen Lamp Kit

Part No. 5196

5.00 stars, based on 2 reviews 2 review(s). | Write a review

PIAA's Xtra Technology produces more light with stock power draw
PIAAs Proprietary ATP Technology gives the driver long reach with a wider beam
Compact Ultra Thin Housing
Comes with stylish PIAA black mesh grill
Limited Lifetime Warranty

510 ATP Intense White ATP Halogen Lamp Kit

The PIAA ATP Intense White light Kit is designed to provide improved visibility in rain, fog or snow. This light features a larger glass tube with a white top coat which allows the light to burn at cooler temperature. This kit is easy to install and includes a wiring harness, relay and switch. PIAA's 510 All-Terrain Pattern (ATP) provides a beam pattern with the perfect combination of height, width, and distance.

510 ATP Intense White ATP Halogen Lamp Kit installation instructions

REPLACEMENT PARTS
Halogen Lights	Single Lamp	Single Lens	Replacement Bulb	Wiring Harness	Relay	Switch
004XT Driving	412	30412	15213	34085	33086	30034
2000 Series Ion Crystal Fog	2011	32010	13555	34085	33086	30034
2000 Series Xtreme White Fog	2010	32010	15213	34085	33086	30034
2100 Series Xtreme White Driving	2112	32112	15213	34085	33086	30034
2100 Series Xtreme White Fog	2110	32110	15213	34085	33086	30034
40 Series Driving	4012	34012	13055	34085	33086	30034
410 Series Driving	4102	34102	19015	34087	33086	30034
510 Ion Crystal Fog	5101	35101	13455	34085	33086	30034
510 Super White Driving	5104	35104	13910	34085	33086	30034
510 Xtreme White SMR Fog	5110	35110	15213	34085	33086	30034
510 Xtreme White SMR Driving	5112	35112	15213	34085	33086	30034
510 Intense White ATP	5106	35106	15213	34085	33086	30034
520 Ion Crystal Fog Chrome	5201	35201	13085	34260	33260	30034
520 Ion Crystal Driving Chrome	5203	35203	13085	34260	33260	30034
520 Ion Crystal Fog Black	5211	35201	13085	34260	33260	30034
520 Ion Crystal Driving Black	5213	35203	13085	34260	33260	30034
520 Xtreme White SMR Driving Chrome	5204	35202	15213	34260	33260	30034
520 Xtreme White SMR Driving Black	5214	35202	15213	34260	33260	30034
520 Xtreme White ATP Black	5216	35206	15286	34260	33260	30034
525 Series Twin Beam	5258	35258	14561	34400	33086	30035
540 Ion Crystal Fog	5401	35401	13455	34085	33086	30034
540 Xtreme White Driving	5402	35402	15213	34085	33086	30034
580 Xtreme White Driving	5802	38302	15286	34260	33260	30034
RS800 Twin Beam Shock Lamp	8018	38018	14561	34088	33260	30035
1500 Series Back-up	1520	31520	13055	34046	33046	30022
2000 Series Back-up	2020	32010	13055	34046	33046	30022
LP Series LED Lights	Single Lamp	Single Lens	Replacement Bulb	Wiring Harness	Relay	Switch
530 White LED Fog	05300	-	-	34070	-	-
530 Yellow LED Fog	12-05300	-	-	34070	-	-
530 White LED Driving	05302	-	-	34070	-	-
530 Yellow LED Driving	12-05302	-	-	34070	-	-
550 White LED Driving	05502	-	-	34071	33086	30034
560 White LED Driving	05602	-	-	34071	33086	30034
570 LED Driving	05702	-	-	34071	33086	30034
RF Series LED Light Bars	Single Lamp	Single Lens	Replacement Bulb	Wiring Harness	Relay	Switch
RF3 LED Flood	07320	-	-	34071	33086	30034
RF3 LED Driving	07403	-	-	34071	33086	30034
RF6 Yellow Fog	12-07206	-	-	34071	33086	30034
RF6 White Fog	07006	-	-	34071	33086	30034
RF6 White Hybrid	16-07106	-	-	34071	33086	30034
RF6 White Driving	07406	-	-	34071	33086	30034
RF10 Yellow Fog	12-07210	-	-	34071	33086	30034
RF10 White Fog	07010	-	-	34071	33086	30034
RF10 White Hybrid	16-07110	-	-	34071	33086	30034
RF10 White Driving	07410	-	-	34071	33086	30034
RF18 Yellow Fog	12-07218	-	-	34071	33086	30034
RF18 White Fog	07018	-	-	34071	33086	30034
RF18 White Hybrid	16-07118	-	-	34071	33086	30034
RF18 White Driving	07418	-	-	34071	33086	30034
Quad Series Lights	Single Lamps	Single Lens	Replacement Bulbs	Wiring Harness	Relay	Switch
Quad Cube Spot	16-06603	-	-	34073	-	-
Quad Cube Flood	16-06303	-	-	34073	-	-
Quad 12" Spot	16-06612	-	-	34074	-	-
Quad 12" Combo	16-06112	-	-	34074	-	-
Quad 20" Spot	16-06620	-	-	34074	-	-
Quad 20" Combo	16-06120	-	-	34074	-	-
Quad 30" Spot	16-06630	-	-	34074	-	-
Quad 30" Combo	16-06130	-	-	34074	-	-
LED DRL Lights	Kit	Single	Replacement Bulb	Wiring Harness	Relay	Switch
DR205	9205	-	-	-	-	-
DR305	9305		-	-	-	-
Deno 2	9150	-	-	34020	-	-
Deno 3 Rear Fog	-	-	-	-	-	-
Deno 6	9156	-	-	34020	-	-

HID Lights	Single Lamps	Single Lens	Replacement Bulb	Wiring Harness	Relay	Switch
RS400 Driving	8004	38004	19993	34035	33260	30036
RS600 Driving	8006	38006	19993	34035	33260	30036
RS800 Driving	8008	38008	19999	34035	33260	30036

Two lamps
Wiring harness
Relay
Switch
Installation Instructions

Overall Customer Rating of 2 Reviews:

Write a review!

Read all reviews

Jacques

Westfield, N.B. Canada

Great Driving Lights

1/10/2017

Rating:

Pros:

Cons:

<p>I installed them on my 2015 Jeep Cherokee sport because the headlights are very poor. Now I can see very well in any weather. I just love them and I highly recommend them to everyone that I meet.</p>

Rick

Great lights

7/20/2016

Rating:

Pros:

nice%20mixed%20beam
easy%20install

Cons:

none

I ordered these to install on my 2004 Silverado bumper. All of the wiring and hardware is included to install them. The lights put out a nice beam pattern that is far enough yet wider than a standard long rage to light up the sides of the road. I'd recommend them to my friends.
