Bmw 1200 Gs Light Bar

Part No. 74202
There are no reviews yet. | Write a review
  • Fits all models including Adventure models
  • Made from 6061-T6 Aluminum
  • Powder Coated Black for Durability
  • Will not fit Adventure Models with OE Lamps

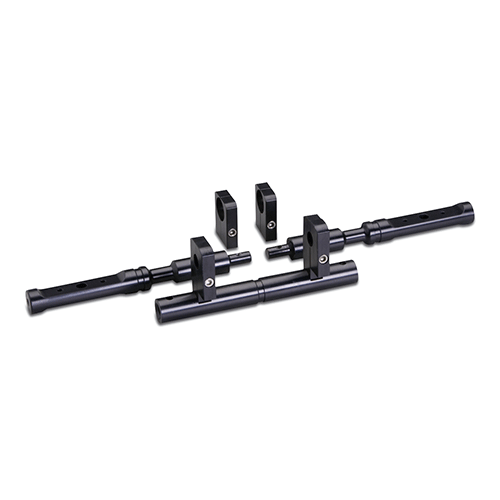

The PIAA R1200GS light Bar is designed to install PIAA lights on all BMW R1200GS bikes including the Adventure models. (Will not fit Adventure models with OE factory projector lights.) Made from 6061-T6 billet aluminum, it is both light weight and strong. An easy to install mounting bracket attaches the bar to the frame in a secure location under the front fender. Each end is threaded to accept a 10mm bolt which makes it the perfect location to mount a second PIAA light. (We recommend the PIAA 1100 LED.)

REPLACEMENT PARTS





Halogen Lamps single lamp single lens bulb wiring harness relay switch
004XT Driving 412 30412 15213 34085 33086 30034
2000 Series Ion Crystal Fog 2011 32010 13555 34085 33086 30034
2000 Series Xtreme White Fog 2010 32010 15213 34085 33086 30034
2100 Series Xtreme  White Driving 2112 32112 15213 34085 33086 30034
2100 Series Xtreme White Fog 2110 32110 15213 34085 33086 30034
40 Series Driving  4012 34012 13055 34085 33086 30034
410 Series Driving  4102 34102 10915 34087 33086 30034
510 Ion Crystal Fog 5101 35101 13455 34085 33086 30034
510 Super White Driving 5104 35104 13910 34085 33086 30034
510 Xtreme White SMR Fog 5110 35110 15213 34085 33086 30034
510 Xtreme White SMR Driving 5112 35112 15213 34085 33086 30034
510 Intense White ATP 5106 35106 10933 34085 33086 30034
520 Ion Crystal Fog Chrome 5201 35201 13085 34260 33260 30034
520 Ion Crystal Driving Chrome 5203 35203 13085 34260 33260 30034
520 Ion Crystal Fog Black  5211 35201 13085 34260 33260 30034
520 Ion Crystal Driving Black  5213 35203 13085 34260 33260 30034
520 Xtreme White SMR Driving Chrome 5204 35202 15213 34260 33260 30034
520 Xtreme White SMR Driving Black
5214
35202
15213
34260
33260
30034
520 Xtreme White ATP Black 5216 35206 15286 34260 33260 30034
525 Series Twin Beam  5258 35258 14561 34400 33086 30035
540 Ion Crystal Fog  5401 35401 13455 34085 33086 30034
540 Xtreme White Driving 5402 35402 15213 34085 33086 30034
580 Xtreme White Driving  5802 38302 15286 34260 33260 30034
RS800 Twin Beam Shock Lamp 8018 38018 14561 34088 33260 30035
1500 Series Back-up 1520 31520 13055 34046 33046 30022
2000 Series back up  2020 32010 13055 34046 33046 30022
LED Lamps single lamp single lens bulb wiring harness relay switch
530 LED Fog 5300 - - 34070 - -
530 LED Driving  5302 - - 34070 - -
570 LED Driving  5702 - - 34071 33086 30034
DR205 9205 - - - - -
DR305 9305
- - - -
Deno 2 9150 - - 34020 - -
Deno 3 Rear Fog  - - - - - -
Deno 6 9156 - - 34020 - -







HID Lamps single lamps single lens bulb wiring harness relay  switch
RS400 Driving  8004 38004 19993 34035 33260 30036
RS600 Driving  8006 38006 19993 34035 33260 30036
RS800 Driving 8008 38008 19999 34035 33260 30036
